MD4030 compact damage tolerant life preserver Mustang Survival

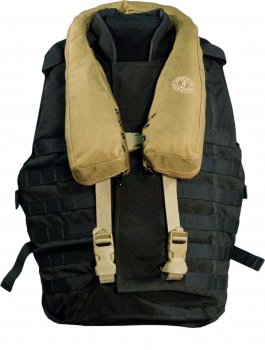

MD4030 DTLP PFD in Coyote Tan

Hammar Inflator from Mustang Survival

Available Colors:
MD4030 damage tolerant life preserver PFD from Musatng Survival Coyote Tan





Download Datasheet and User Manual for the MD4030 Damage Tolerant Life Preserver in PDF format. Obtain a reader using the link below.

MD4030 Datasheet

MD4030 User Manual

Document load times are influenced by your connection speed. Dial-up connection (slow) downloads may take 10-15 minutes.
MD4030 damage tolerant life preserver PFD from Musatng Survival

Applications:
Coast Guard
First Responders
Homeland Security
Law Enforcement
Search & Rescue
Military - Land
Military - Sea
Compact Tactical Damage Tolerant Life Preserver (DTLP) for Marine Operations $936.20
Retail $1,510.52

MD4030 - This life preserver from Mustang Survival can take a direct hit from a fire arm or fragment and still inflate. The unique damage tolerant design makes this PFD well suited for use in high risk tactical situations. The 65 lb buoyancy provides extra flotation to compensate for the personal equipment and arms carried on missions. This universal size PFD can be integrated with most ballistic vests and comes with a harness. US Patent 6,453,840.

This extreme level of buoyancy compensates for nearly all configurations of personal equipment and small arms carried on missions. The DTLP's one size fits all design integrates with almost any tactical vest or armor plate carrier that uses Modular Lightweight Load-carrying Equipment (MOLLE) system.

The four point attachment system incorporates side release buckles to permit emergency doffing of the life preserver and allows quick release vests to fall away.

The MD4030 Marine Damage Tolerant Life Preserver (DTLP) is designed for tactical boarding parties, and uses Auto Hydrostatic inflator technology HIT™. In the event of accidental immersion, the damage tolerant life preserver automatically inflates in 4 or more inches of water and self-rights an unconscious user. The protective cover is made of durable, high tenacity nylon that will stand up to the toughest missions. For missions that require manually activated inflation, the optional MA7219 conversion cap can reconfigure the PFD from automatic to manually activated inflation.

The MD4030 comes standard with two Kevlar® ballistic pouches MA4050. These pouches cover the CO² cylinders and prevent them from becoming a projectile hazard in the event they are penetrated by small arms fire or fragmentation. Testing has shown that if unprotected, the cylinder separates from its inflator when struck and is extremely hazardous to the wearer. The MA4050 Ballistic Protective Pouch is protected by Pacific Safety Product's Canadian Patent No. 2,348,139 and US Patent pending.

Adult Universal

Select Quantity

Re-Arm Kit MA4060
*NOTE 2 kits are required if both cells inflate
(add $58.20 each)

Manual Converter MA7219
(add $37.20 each; Requires 2 - one for each side)

Ballistic Pouch MA4050
(add $71.20 each)

Add item to shopping cart and continue to checkout
Add item to shopping cart and return the Mustang Survival tactical products page
FEATURES:
  • 65 lbs buoyancy when fully deployed
  • Constructed using two polyurethane coated nylon redundant cells
  • Mustang Survival exclusive Hydrostatic Inflation System HIT™
  • Hammar 1F auto hydrostatic inflator
  • Inflator is maintenance free for 5 years unless inflated
  • SecureZip™ closure system for easy repacking
  • Ballistic Cylinder Pouch MA4050 provides CO² cylinder containment in the event of ballistic penetration.
  • Oral inflation backup
  • Pressure relief valve to prevent over inflation
  • SOLAS signal whistle & Sea Light
  • Buddy line and lifting strap
  • SOLAS reflective tape on inflated cell
  • MA7219 Manual conversion kit sold separately
  • MA4060 re-arming kit for the inflatable cell
Life Preserver Inflatable Cells and Restraint Layer

The MD4030 damage tolerant life preserver (DTLP) contains two inflatable cells. The cells are made from Radio Frequency (RF) welded, polyurethane coated nylon fabric. The MD4030 is inflated using co² to inflate either cell. If one cell is compromised prior to inflation, the functional redundant cell can be inflated maintaining full flotation performance.

The MD4030 uses a Hammar hydrostatic inflator that activates automatically upon entry into the water yet remains impervious to high humidity, heavy rain or waves. The MD4030 may be actuated manually by pulling on the beaded handle for either chamber. Inflating either one or both chambers provide full function of the device for operational use. Both chambers have oral inflation backup and pressure relief valves to prevent over inflation. The MD4030 comes equipped with a dump valve that allows emergency deflation and improved mobility if needed.

When inflated, the cell forms a yoke around the back of the user's neck, extending into two lobes down the users chest. The inflatable cells are contained within a protective restraint, and can be easily removed for maintenance, replaced or repaired. The damage tolerant life preserver (DTLP) comes standard with a SOLAS signal whistle, sea light, buddy line, lifting strap, and SOLAS grade retro reflective tape. The inflatable cell restraint layer is black in color.
