Tactical Aircrew Dry Suit System

MSF300



MAP XS-3XL $4,509.40

Retail $6,494.45

Designed for over water helicopter operations...or any other tactical operations where the environment dictates the need for increased hypothermia protection.

Mustang Survival's continuing efforts to provide you with the best comfort and highest protection from the hazards of flight have resulted in a two layer integrated garment that reduces heat stress, and protects against flame, immersion, and hypothermia. The MSF300 is a two layer Aircrew Dry Suit that combines the performance of the 3 layer MAC300 into two layers allowing for greater mobility with lower thermal burden. The MSF300 two layer modular design allows quick donning and doffing through an innovative entry system, and provides a wide array of sizes.

The patented CCS™ Closed Comfort System adjustable neck seal, and redesigned trim-to-fit neoprene wrist seals improve the comfort of flight crews during extended missions. The proven durability results in extended service life when compared to that of traditional latex neck and wrist seals.

The outer shell uses a blended Gore-tex® / Nomex® fabric that is waterproof, breathable, flame retardant and anti-static. High wear areas are strategically reinforced to enhance the suit's durability and prevent abrasion damage that could compromise the suit's integrity. The breathable thermal liner provides both insulation and emergency flotation and features Mustang Survival's aerated closed-cell foam quilted with a wicking fabric that pulls excess moisture away from the body.

The unique trim to fit neoprene wrist design seals better and requires no secondary closure after donning providing water tight integrity. Improved means of interconnection between modules results in easier assembly of components and less "down time" when performing maintenance. The improved rear entry is ergonomically designed to allow donning and doffing of the MSF300 by one person. Pockets are designed to be accessible even when the MSF300 is worn with additional flight or survival equipment. An adjustable neck seal using Mustang Survival Closed Comfort System (CCS™) can be worn lose to provide comfort out of the water and can quickly be drawn tight to keep the water out.

The MSF300 comes ready to wear with included universally sized dry socks, trim to fit wrist seals and CCS™ adjustable neck seal.

**Assorted sizes IN STOCK**

Select Quantity
Select Size
Color
Zipper Lubricant MA2292 (add $62.40)

Available Colors

MSF300 Constant Wear Aviation Dry Suit system sage green Sage Green
MSF300 Constant Wear Aviation Dry Suit system orange Orange

MSF300

MSF300 Constant Wear Aviation Dry Suit system front

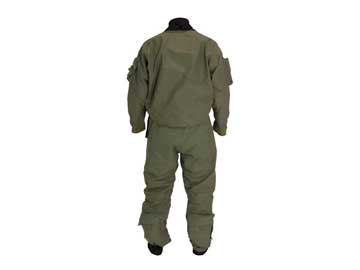

MSF300 Constant Wear Aviation Dry Suit system back

Mustang Survival Gear brought to you by www.machovec.com

Features

  • Suit comes ready to wear with included universally sized dry socks
  • Trim to fit wrist seals are durable when compared to traditional rubber wrist seals
  • CCS™ adjustable neck seal improves comfort of flight crews during extended missions
  • High wear areas are strategically reinforced to enhance durability and prevent abrasion damage
  • Integral pockets provide access even when wearing a survival vest or body armor
  • 3 layers of performance combined into 2 layers offers greater mobility, reduced bulk and thermal burden
  • When integrated with the outer shell, the MSF300 suit system provides a stirred (calm) water Clo value of 0.58
  • Flame retardant
  • Includes inflatable survival mitts with lanyard to tether to suit
  • Includes neoprene hood to provide wetsuit style insulation
  • Add Kent M-24 Deluxe Manual Flame Retardant Inflatable Life Jacket (sold separately) for flotation protection in case of emergency landing. M-24 features a unique slim profile for constant wear comfort and mobility with helmet on
  • Replacement thermal liner MA7246
  • Replacement outer shell immersion layer MA7345
  • Replacement closed cell neoprene hood MA7348
  • Replacement inflatable survival mitts MA7149
  • Replacement carry bag MA7102

MODULAR DESIGN

The two-piece modular design of the MSF300 makes maintenance, repair or replacement of any component an easy task. The interconnection system between components facilitates assembly and disassembly, minimizing "downtime" when performing routine cleaning, maintenance or repairs.

OUTER SHELL

The Outer Shell is constructed using MIL-C-85637 Gore-Tex® / NOMEX® laminate- a waterproof, windproof, breathable, flame retardant and anti-static laminate base fabric designed to reduce heat stress, and fatigue. The MSF300 protects the wearer during refueling or hostile flight operations where the dangers of cockpit flash fires may exist.

High-wear areas are strategically reinforced to enhance the suit's durability and prevent abrasion damage that could compromise the suit's integrity.

Integral pockets are designed for a variety of uses and facilitate access even when wearing a survival vest over the suit.

THERMAL LINER

The Thermal Liner is constructed of our patented breathable closed-cell foam. The patented breathable foam liner is engineered with multiple apertures, then quilted using a wicking fabric and thread designed to pull excess moisture vapor (sweat) away from the wearer's body. The breathable thermal liner provides both insulation and emergency flotation and features Mustang Survival's aerated closed cell foam.

Easily detached from the Outer Shell, the Thermal module can be removed for laundering or to reduce thermal protection where not operationally required. When integrated with the Outer Shell, the MSF300 suit system provides a stirred (calm) water Clo value of 0.58.

All of these features lead to life-cycle cost savings when compared to traditional dry suits designed for flight crews.

MAS / SIN 084/633-21a
Authorization US Army (select units), FBI THU
US Patents 5267519; 6668386
Canadian Patent 2082793

MSF300 Size Chart

Size Chest (inches) Waist (inches) Inseam (inches) Weight (lbs) Chest (cm) Waist (cm) Inseam (cm) Weight (kg)
XS 30 - 34 28 27 99 - 154 76 - 86 71 70 45 - 70
S 34 - 38 28 - 30 27.5 99 - 154 86 - 96 71 - 76 70 45 - 70
M 38 - 42 32 - 34 31 132 - 198 96 - 107 81 - 86 79 60 - 90
L 42 - 46 36 - 38 32 176 - 242 107 - 117 91 - 97 81 80 - 110
XL 46 - 50 40 - 42 33 198 - 276 117 - 127 102 - 107 84 90 - 125
2XL 50 - 54 44 - 46 34 242 - 309 127 - 137 112 - 117 86 110 - 140
3XL 54 - 58 48 - 50 35 275 - 352 137 - 147 122 - 127 89 125 - 160

Download MSF300 Specification Sheet

The MSF300 Specification Sheet is a pdf file. If you are unable to open it you will need to download the latest FREE version of Adobe Acrobat Reader.

Get Adobe PDF reader FREE

Download MSF300 Owner Manual

The MSF300 Owner Manual is a pdf file. If you are unable to open it you will need to download the latest FREE version of Adobe Acrobat Reader.

Get Adobe PDF reader FREE

Download MSF300 Trim-to-Fit Instructions

The MSF300 Trim-to-Fit Instructions is a pdf file. If you are unable to open it you will need to download the latest FREE version of Adobe Acrobat Reader.

Get Adobe PDF reader FREE

Mustang Survival Warranty and Repair Information

**Products not eligible for returns include: Re-Arm Kits, Custom Orders, Non Current and Non Stock Products, Discontinued Products and Inflatable PFD's purchased 6 months ago or longer.

The Mustang Survival Warranty and Repair information sheet is a pdf file. If you are unable to open it you will need to download the latest FREE version of Adobe Acrobat Reader.

Get Adobe PDF reader FREE
