Integrated Aircrew Survival Vest

MSV974

+1-763-263-9835 for Quote

Simplified life preserver survival vest with minimal survival equipment pockets for training aircraft and flight testing fixed wing and rotary wing aircraft.

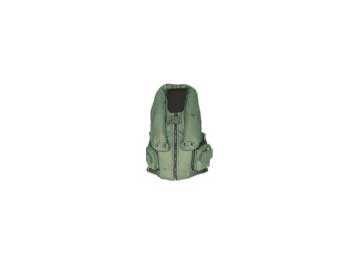

Designed specifically for pilots and aircrew to be worn over flight suits, the Mustang Survival MSV974 is an inflatable flotation cell integrated into a survival vest. Providing a full 37 lbs. of buoyancy, the inflatable cell - available with automatic or manual inflation - is comprised of two independent chambers, separated by an internal membrane, with single point inflation. This provides for an orally inflated reserve chamber in the event that the primary chamber becomes damaged.

All Mustang Survival aircrew life preserver / survival vests include integrated harness lifting straps, signal whistle, SOLAS reflective tape, buddy tether line and integrated waist buckle as standard features.

Materials

The high frequency welded construction of the inflatable cell utilizes polyurethane coated nylon fabric which exceeds the requirements of both MIL-C-83489 and AMS 3272/1. The protective LP cover is constructed from fire resistant 6 oz. Nomex® aramid fabric. This vest has a wide range of adjustability for mission role and requirement changes.

Mustang Survival Gear brought to you by www.machovec.com

Features

  • Platforms: T-37, Hawk and Harvard II Training aircraft, NATO Flight Training Centerlife vest for helicopterlife vest for helicoptersurvival vest for transport aircraft
  • LP stole: Medium with cup snap system
  • LP color: Yellow
  • Outside pockets consist of 1 right side, 1 left side with double flap windblast enclosure
  • Inside pockets consist of 1 left side, 1 right side and 2 small back
  • Radio / Beacon compatible: small transmitter 5" x 3.5" x 1.5" or 13 cm x 9 cm x 4 cm
  • Automatic or manual inflatable flotation cell providing 37 lbs / 150N buoyancy
  • Provides 37 lbs Buoyancy which is more than twice the buoyancy needed for an average person to float
  • Made with Nomex® fire resistance fabric and mesh
  • Dual chamber system for emergency oral inflation in the event of damage to one chamber
  • Integrated lifting harness
  • Waist and chest adjustment straps
  • Buddy-line and SOLAS whistle

Additional Options

  • Customized pocket and life preserver configuration available
  • Tactical coloring for inflatable cell
  • Micro climate vest insert Mustang Survival model MSF843 Air Cooling Vest
  • Ballistic vest insert. Current insert meet NIJ Level IIIA standard. Insert has been designed to hold Hard Armor Plates.

** Export restrictions may apply, call for inquiry.

Available Colors

MSV974 training aircrew integrated survival vest pfd Sage Green

MSV974

MSV974 training aircrew integrated survival vest sage green

MSV974 Size Chart

  Chest (inches) Chest (cm) NSN
Small 36" - 40" 91 - 102 4220-25-146-4276
Medium 40" - 44" 102 - 112 4220-21-146-4299
Large 44" - 48" 112 - 122 4220-21-146-4300
XL 48" - 52" 122 - 132
2XL 52" - 56" 132 - 142
3XL 56" - 60" 142 - 152

Formula to Determine Buoyancy

If a man weighs 200 pounds on land, he only weighs 10 pounds in the water.

80% of the human body is water. Water in the body has no weight in the water.

200 pounds x 80% = 160 pounds
200 pounds – 160 pounds = 40 pounds

The human body is 15% fat, fat is lighter than water.

200 pounds x 15% = 30 pounds
40 pounds – 30 pounds = 10 pounds

A 200 pound person only weighs 10 pounds in the water.

A U.S.C.G. approved Type V vest is mandated to have 17.5 pounds of buoyancy.

If a man weighs 350 pounds on land, he only weighs:

80% of the human body is water. Water in the body has no weight in the water.

350 x 80% = 280 pounds
350 pounds – 280 pounds = 70 pounds

The human body is 15% fat, fat is lighter than water.

350 pounds x 15% = 52.5 pounds
70 pounds – 52.5 pounds = 17.5 pounds

A 350 pound person weighs 17.5 pounds in the water.
