Constant Wear Aviation Dry Suit

MSF750 CF

DISCONTINUED

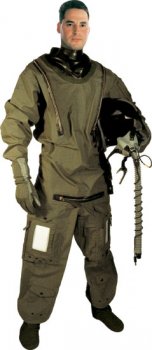

Mustang Survival MSF750 CF Constant Wear Aviation Dry Suit provides protection from hypothermia (when worn in conjunction with an insulating thermal undergarment) and is intended for use by air crews engaged in over water operations. The moisture vapor permeability characteristics of the suit reduce heat stress, providing greater operational efficiency for the wearer.

The MSF750 CF is a one piece design fitted with high stretch, soft latex seals at the neck and wrists. Seals are replaceable by technicians at the unit level. The generous cut of the suit allows room for an anti-G suit to be worn underneath the garment and a pass-through option to permit connection of the anti-G suit hose without leakage. Orders can be customized to accommodate various connectors and seals for anti-G garments, partial pressure breathing and active cooling systems.

Self donning is facilitated by a unique yoke style waterproof entry zipper. The design minimizes pressure point discomfort and maximizes compatibility with other operational equipment. It also allows for partial doffing of the collar section when the flyers are in 'stand-by' mode.

A urinary relief waterproof zipper is provided. A full set of pockets eliminates the need for a conventional flight suit to be worn over the MSF750 CF, thereby further reducing encumbrance to the wearer.

Waterproof moisture vapor permeable stretch socks are provided with the suit. These socks are normally fitted by technicians at the unit level to ensure correct sizing. If required, Mustang Survival will provide suits with socks attached.

**The MSF750 CF Flight Commander II Flight Suit is built to order, non-stocking item.

Available Colors

MSF750 CF Constant Wear Aviation Dry Suit sage green Sage Green

MSF750 CF

MSF750 CF Constant Wear Aviation Dry Suit

Mustang Survival Gear brought to you by www.machovec.com
FABRIC

The fabric is constructed with a tri-laminate which is a flame resistant aramid cloth, and a waterproof, but moisture vapor permeable polytetrafluoroethylene (PTEE) membrane.

THERMAL COMFORT

In a 20° C, 50% relative humidity environment, the suit will permit transmission of approximately 175 gms of moisture vapor per hour. This equates to a heat dissipation of approximately 150 watts per hour during periods of high activity.

HYPOTHERMIA PROTECTION

Thermal insulation of 0.847 immersed clo is achieved when tested on the thermally instrumented manikin as a complete suit worn over a full coverage thermal undergarment. The MSF750 CF, in common with other suits of its type, itself does not provide the insulation. Flyers must wear the appropriate thermal undergarments or the protection afforded will be substantially reduced.

Features

  • One piece design is fitted with high stretch, soft latex seals at the neck and wrists
  • Waterproof moisture vapor permeable stretch socks are provided with the suit
    • These socks are normally fitted by technicians to ensure correct sizing
    • Mustang can provide the MSF750 CF with socks attached
  • A full set of pocketry eliminates the need for a conventional flight suit to be worn over the MSF750 CF
  • Self donning is facilitated by a unique yoke style waterproof entry zipper
  • The design minimizes pressure point discomfort and maximizes compatibility with other operational equipment
  • Allows for partial doffing on the collar section when the flyer is in 'stand-by' mode
  • A urinary relief waterproof zipper is provided
  • Available in 11 sizes
  • Add the MD1127 Constant Wear Twin Chamber Aviation Inflatable Life Vest sold separately) for flotation protection in case of emergency landing. MD1127 features a unique slim profile for constant wear comfort and mobility with helmet on and is compatible with aircraft seat harness. Click HERE for all the information on the MD1127 PFD
  • Lightweight, approximately 4 lbs. (1.8 kg)
  • Immersed Clo 0.847

SIN 633-21a
CAGE/NSCM/FSC 37463

MSF750 CF Size Chart

Size Chest (inches) Height (inches) Chest (cm) Height (cm) Description
1 33 - 36 65 - 68 84 - 91 165 - 173 XS Chest, Short Height
2 36 - 39 65 - 68 91 - 99 165 - 173 S Chest, Short Height
3 39 - 42 65 - 68 99 - 107 165 - 173 M Chest, Short Height
4 33 - 36 68 - 71 84 - 91 173 - 180 XS Chest, Regular Height
5 36 - 39 68 - 71 91 - 99 173 - 180 S Chest, Regular Height
6 39 - 42 68 - 71 99 - 107 173 - 180 M Chest, Regular Height
7 36 - 39 71 - 74 91 - 99 180 - 188 S Chest, Tall Height
8 39 - 42 71 - 74 99 - 107 180 - 188 M Chest, Tall Height
9 42 - 45 71 - 74 107 - 114 180 - 188 L Chest, Tall Height
9XT 42 - 45 74 - 77 107 - 114 188 - 196 L Chest, XTall Height
10 45 - 48 74 - 77 144 - 122 188 - 196 XL Chest, XTall Height

Download MSF750 CF Specification Sheet

The MSF750 CF Specification Sheet is a pdf file. If you are unable to open it you will need to download the latest FREE version of Adobe Acrobat Reader.

Get Adobe PDF reader FREE

Download MSF750 CF Owner Manual

The MSF750 CF Owner Manual is a pdf file. If you are unable to open it you will need to download the latest FREE version of Adobe Acrobat Reader.

Get Adobe PDF reader FREE

Size Color NSN Mil Spec
1 Sage Green 8475-21-907-9902 D-22-536-000/SF-000
2 Sage Green 8475-21-907-9903 D-22-536-000/SF-000
3 Sage Green 8475-21-907-9904 D-22-536-000/SF-000
4 Sage Green 8475-21-907-9905 D-22-536-000/SF-000
5 Sage Green 8475-21-907-9906 D-22-536-000/SF-000
6 Sage Green 8475-21-907-9907 D-22-536-000/SF-000
7 Sage Green 8475-21-907-9908 D-22-536-000/SF-000
8 Sage Green 8475-21-907-9909 D-22-536-000/SF-000
9 Sage Green 8475-21-907-9910 D-22-536-000/SF-000
9XT Sage Green 8475-21-907-9911 D-22-536-000/SF-000
10 Sage Green 8475-21-907-9912 D-22-536-000/SF-000
